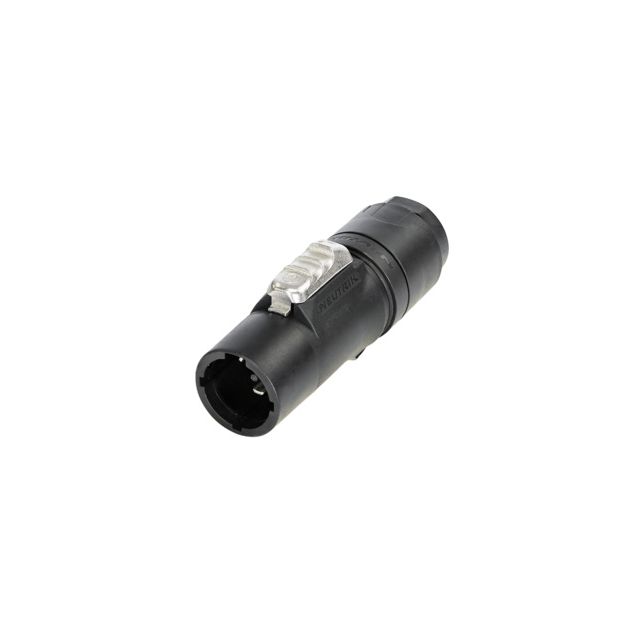

Neutrik POWERCON TRUE1 - 16A inline Male 10-16mm
Referentie
NAC3MXWL
Details
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Dust and water resistant according to IP65 in mated condition
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL recognized components
- Powercord 10-16mm diameter
Meer informatie
| Referentie | NAC3MXWL |
|---|---|
| Data sheet | NAC3MXWL1.pdf |
| Technische fiche | NAC3MXWL.pdf |
| Aansluiting | Schroeven |
| Connector | Powercon |
| Zolang de voorraad strekt | Nee |
| Toepassing | Kabel |
Technische specificaties
| Product | |
| Title | NAC3MX-W-TOP-L |
| Connector series | powerCON TRUE1 |
| Electrical | |
| Dieletric strength | 2.8 kVac |
| Insulation resistance | > 0.1 GΩ |
| Number of electronical contacts | 2 + PE |
| Rating Europe | IEC EN 60320-1: 16 A 250 V AC |
| Certified with cable types: H07RN-F3G2.5 | |
| Rating USA | UL 60320-1: 20 A 250 V AC |
| Certified with cable types: | |
| - SOOW 12/3 | |
| - SJOWW 12/3 |
| Mechanical | |
| Cable O.D. | 10 – 16 mm (0.39 – 0.63 inches) |
| Lifetime | Typically 5’000 mating cycles |
| Wire size (mm²) | 2.5 mm² |
| Wire size (AWG) | 14 – 12 AWG |
| Material | |
| Contact plating | Ag |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 V-0 |
| Protection class | IP65 |
| UV resistance | F1 rated material withstands UV exposure |
