SPECIFICATIONS

FUNCTIONS

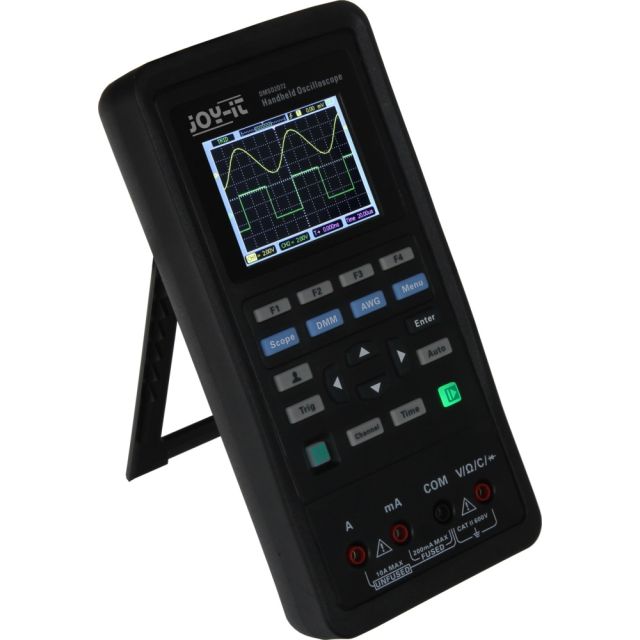

2-channel-oscilloscope, signal generator for arbitrary wave types, 6 multimeter measuring modes

DISPLAY TYPE

2,8 Inch 64K color-TFT-LCD

DISPLAY RESOLUTION

320 x 240 Pixels

DISPLAY SETTINGS

Adjustable background brightness, backlight duration, auto power off time

PROTECTIVE CASE

Silicon cover, good impact resistance, outstanding heat resistance, easy to disassemble

SPECIAL FEATURES

mobile use through battery operation, 3 in 1 device (oscilloscope, signal generator, multimeter), 3 languages (German, English, French)

ASSEMBLY/ STAND FUNCTION

45° suspension bracket

INTERFACE

USB type C for data/power

CHARGING CURRENT

5 V / 2 A

CHARGING DURANCE @ 2A

Full recharge after 2 h

RECHARGEABLE BATTERY

2x 18650 Lithium

BATTERY LIFE IN USE

A full day

BATTERY LIFE IN STANDBY

Up to eight weeks

SELF CALIBRATION

After long non-usage

PC SOFTWARE SUPPORT

Windows 7/8/10 32 & 64 bit

OSCILLOSCOPE SPECIFICATIONS

Oscilloscope with Storage function

SAMPLING RATE

Single channel 250 MSa/s Dual Channel 125 MSa/S

BANDWIDTH

70 MHz

VERTICAL RESOLUTION

10 mV - 10 V

AUTOMATIC MEASUREMENT OF

Frequency and Amplitude

MANUAL CURSOR MEASUREMENT

Voltage and time

CHANNELS

2+ DMM + AWG

OUTPUT IMPEDANCE (DC)

25 pF ± 3pF ; 1 MΩ ±2%

MAXIMUM INPUT VOLTAGE

150 V RMS

SIGNAL GENERATOR:

SAMPLING RATE

250 MSa/s

VERTICAL RESOLUTION

12 bits

WAVEFORMS

Sine, square, triangle, trapezoid, and many more

SINE

1Hz - 25 MHz

SQUARE

1Hz - 10 MHz

TRIANGULAR

1Hz - 1MHz

TRAPEZOID

1Hz - 5MHz

FREQUENCY RESOLUTION

1 Hz

OUTPUT IMPEDANCE (DC)

50 Ω

DIGITAL MULTIMETER:

6 MULTIMETER MEASURING MODES

Voltage, current, resistance, capacity, diode, on-off

ITEMS DELIVERED

JT-DMSO2D72, 2 batteries (18650, 2600 mAh), passive 80 MHz Probe + accessories, 2x BNC to crocodile clip co-axial cable, 2x DMM test lead, USB to USB type C cable, USB power supply (5 V, 2 A)

DIMENSIONS

199 x 98 x 40 mm

WEIGHT

1100 Gramm

EAN

4250236819723

ARTICLE NO.

JT-DMSO2D72
