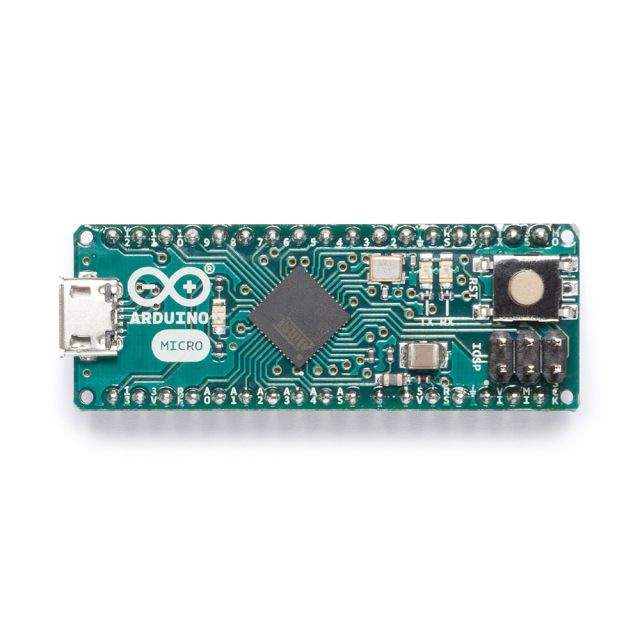

Arduino Micro microcontroller bord met ATmega32u4
- Ontwikkeld in samenwerking met adafruit
- 20 Digitale I/O pins
- 16MHz Kristal
- micro USB connection
- ICSP Header
- Reset knop.
- Afmetingen: 48x18mm
- Equivalent product aan Genuino Micro
| Referentie | A000053 |
|---|---|
| EAN code | 08058333491134 |
| End of life | Nee |
| Merk | ARDUINO |
| Data sheet | A000053.pdf |
| Zolang de voorraad strekt | Nee |
The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board; these are detailed on the getting started page.
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.
| Microcontroller | ATmega32U4 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega32U4) of which 4 KB used by bootloader |
| SRAM | 2.5 KB (ATmega32U4) |
| EEPROM | 1 KB (ATmega32U4) |
| Clock Speed | 16 MHz |
| LED_BUILTIN | 13 |
| Length | 48 mm |
| Width | 18 mm |
| Weight | 13 g |
